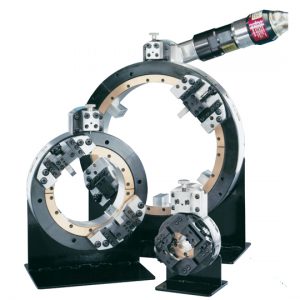

TRI TOOL SBCM SERIES COLLET MOUNT SLIDE BEARING CLAMSHELL LATHES

RAPID SEVERING OF 0.125” TO 4” (10.3MM TO 101.6MM) OD PIPE AND TUBE

SKU: TRI TOOL SBCM SERIES COLLET MOUNT SLIDE BEARING CLAMSHELL LATHES Categories: ,

Description



The SBCM heavy duty range of small diameter clamshell lathes are mounted with full contact collets, this not only allows for secure, self-centring mounting to the tube or pipe, but also prevents distortion of the material being clamped. The SBCM range can be configured to suit clean room applications on request, the tough nickel plating makes the tools very easy to clean and decontaminate of lead inclusion and other foreign material. The ability for the tools to be split in two allows the option of use on inline tube of 1/8” – 3.5” pipework. SBCM tools require very short perch for mounting allowing for versatility where access and available land area is an issue. The vast array of cutting tools for virtually all pipe materials and bevel sever angles, means that the SBCM range of tools are ideal for small bore pipe and tube machining.



Features

  1. Pneumatic, electric (cordless) drive units
  2. Flexible drive shaft for ease of access in tight spaces
  3. Perfect for low clearance operation due to its compact design
  4. The perfect solution for field tie in welds
  5. No lead, copper or brass content in the tool make up
  6. Machining capabilities covering all materials including carbon steel, stainless steel, low alloy, chrome molly, Inconel, duplex & super duplex
  7. Sever & bevel in one operation
  8. 601SBCM, 0.125” to 1” (10.3 to 33.4mm), max wall 0.250” (6.35mm)
  9. 602SBCM, 1” to 2” (33.4 to 60.3mm), max wall 0.250” (6.35mm)
  10. 603SBCM, 1.5” to 3” OD (38.1 to 76.2mm), max wall 0.250” (6.35mm)
  11. 603.5SBCM, 2.5″ to 4″ OD (63.5 to 101.6mm), max wall 0.250″ (6.35mm)



Welding Supply Specialists


Call us on 0151 420 6900

Brand

Tri Tool

Tri Tool has led the way for over 45 years as a resourceful manufacturer of pipe bevelers, pipe & tube cutting machines, and orbital welders.

General Welding are the sole distributers in the UK for Tri Tools fantastic range of premium products and it is our aim is to provide customers with the best machine tools for their applications, on time, and at an affordable price.

Tri Tool's wide range of pipe bevelers, pipe & tube cutting machines and orbital welders are designed for ease of operation, maximum performance, and professional results that save you time and money.

Order with us today or speak with one of our dedicated team on 0151 420 6900.
